For a better understanding of the key concepts and best practices of keywords development, make sure to read first the Keyword development page.

The versatility of Step and its keyword API allows developers to implement their own custom Step’s Keywords whether they use 3rd party automation framework or their own libraries.

The Keyword API defines a clear interface to:

• define and configure Keywords
• access Keyword inputs, session objects, and report data (keyword outputs, performance measurements, attachments)
• implement hooks related to keyword executions (interceptors, error management)

The Keyword API is natively available for Java, .NET and JavaScript/TypeScript.

Keyword declaration

Declaring a keyword with the API is quite simple but varies a bit depending on the target language.

public class MyKeywords extends AbstractKeyword{
  @Keyword
  public void myKeyword() {
    //my automation
  }
}

namespace STEP {
  public class Keywords : StepApi.AbstractScript {
    [Keyword(name = "My Keyword")]
    public void MyKeyword() {
      //your implementation
    }
  }
}

exports.MyKeyword = async (input, output, session, properties) => {
  //do some work
  output.send({ result: 'OK' })
}

Keyword annotation

The Keyword annotation as following optional attributes which can be used:

• name: the name of this keyword. If not specified the method name is used as keyword name
• description: a text describing the keyword usage. It will be displayed in the gui
• properties: the list of properties required by this keyword
• optionalProperties: the list of optional properties which might be used by this keyword
• schema: the JSON schema of the input object
• timeout: the keyword timeout in milliseconds
• planReference: the path to the file containing a plain text plan; used to define a composite keyword

More details on the usage and impact of these attributes are described here.

Keyword inputs

A Keyword’s input is a JsonObject with opened types. Thus the developer can choose the type of their arguments but must ensure that they are read accordingly to that type, otherwise the Json reader will throw an error.
The inputs are passed to the keyword by the caller as described in the following sections.

Reading the inputs in code

Inside the Keyword, you can then retrieve your inputs like this:

String homeUrl = input.getString("url");
int elementIndex = input.getInt("index",1);

String homeUrl = (string)input["url"];

var homeUrl = input['url'];

Reading inputs from method arguments

For Java, there is an easier alternative to define and access inputs: directly as method arguments. In such case, the schema specifying the keyword’s inputs is also generated automatically.

In this case, the @Input annotation is used for each method parameters. This annotation supports following properties:

• name: the name of input (must be defined for method parameter)
• defaultValue - the default value to be used if the input is not defined when calling the keyword (optional)
• required - if true, the value of this input must always be provided (false by default)

You can annotate the following method arguments with @Input:

• String
• Integer (or int)
• Long (or long)
• Double (or double)
• BigDecimal
• BigInteger
• Array or Collection with any of supported types
• Object: any serializable object such as maps

Some examples explaining how to the @Input annotation:

public class KeywordTestClass extends AbstractKeyword {
    @Keyword
    public void MyKeywordWithInputAnnotation(
            @Input(name = "myRequiredInputNumber", required = true) int myRequiredInputNumber,
            @Input(name = "myInputNumber", defaultValue = "3") int myInputNumber,
            @Input(name="myInputBoolean", defaultValue = "true") boolean myInputBoolean,
            @Input(name = "myInputString", defaultValue = "default string value") String myInputString,
            @Input(name = "stringListInput", defaultValue = "string1;string2") List<String> stringList,
            @Input(name = "mapStringInput", defaultValue = "{\"key1\":\"valueStr1\",\"key2\":\"valueStr2\"}") Map<String, String> stringMap,
            @Input(name = "longListInput", defaultValue = "1223456;55555") List<Long> longList,
            @Input(name = "mapLongInput", defaultValue = "{\"key\":3}") Map<String, Long> longMap,
            @Input(name = "booleanListInput", defaultValue = "true;false;true") List<Boolean> booleanList,
            @Input(name = "mapBooleanInput", defaultValue = "{\"key\":true}") Map<String, Boolean> booleangMap) {
    }
}

Passing inputs from code

When calling the keyword from your code (for instance in JUnit), you can pass the input as parameter:

ExecutionContext ctx = KeywordRunner.getExecutionContext(properties, this.getClass());
// { "url" : "http://step.dev", "index" : 3 }
Output<JsonObject> output = ctx.run("MyKeyword", "{\"url\":\"http://www.exense.ch\", \"index\" : 3 }");

Passing inputs from the Step plan

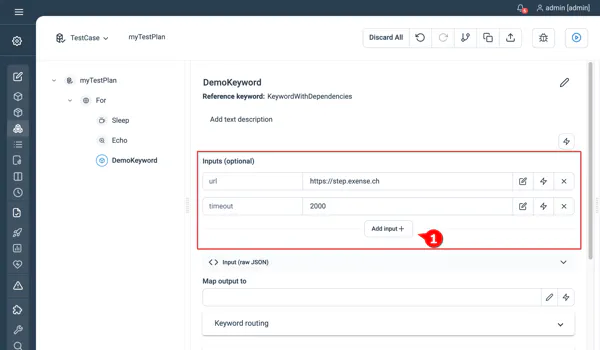

When calling the Keyword from a plan, you can pass the input as parameter as shown in below screenshots. More details can be found in the dedicated documentation for Plans:

If the Keyword has an attached schema required and optional inputs can be defined

Keyword properties

Keywords can also access a map of properties which contains all variables in the scope of execution. This includes variables defined:

• In the properties of the agent executing the keyword
• In the plan calling the keyword using “Set”
• In the parameters defined in the controller
• In the Keyword configuration such as:
• $keywordName: the name of the keyword
• $keywordTimeout: the defined execution timeout of this keyword

You can retrieve the properties in your keywords from the properties map

properties.get("myVar");

properties["myVar"]

properties['myVar']

Keyword outputs

Each keyword can define the content of its output by using the herited “output” object from its parent class. This output builder object is mainly used to:

• add any key/value pair information for example:
  • for functional checks in plan
  • required for workflow execution
• set keyword execution status
• add attachments (pdf, screenshots, exception stack trace as text file…)
• define custom response time measurements for analytics

The method of the OutputBuilder class can be found in the javadoc. The same methods are available for .net. For node.js, you may refer to the source code on github.

Custom fields

Below are example on how to add key/value pair information to your keyword’s output object.

output.add("field_name", "field_value");

output.add("field_name", "field_value");

output.add("field_name","field_value")

Attachment

Below is an example for attaching files to the Keyword’s output:

byte[] bytes = Files.readAllBytes(file.toPath());
Attachment attachment = AttachmentHelper.generateAttachmentFromByteArray(bytes, outputName+".log");
output.addAttachment(attachment);

Attachment a = AttachmentBuilder.generateAttachmentForException(exception);
output.addAttachment(a);

output.attach({ name: 'screenshot.png', hexContent: data })

Attachment size

The Step controller limit the size of the attachment by default to 50 Mbytes, this can be changed with following step.properties

grid.client.max.string.length.bytes=50000000

Measurements

Measurements are automatically created by the controller when executing a keyword. This represents the keyword execution time from the controller view (but excluding any delegation time to the agents). You can create custom response time measurements inside your keyword to have finer granularity and/or to enrich the measurements with any key/value pair for analytics purposes.

Refer to the OutputBuilder class’s javadoc for all available methods.

Example:

output.startMeasure("CustomMeasureInKeyword");
//Do some automation work
output.startMeasure("CustomMeasureInKeyword_Inner");
//Do some further work to be measured with finer granularity
output.stopMeasure();//this stop the lasted opened measurement: "CustomMeasureInKeyword_Inner"
//Add some values to the measurement for analytics and close the measurement "CustomMeasureInKeyword"
Map<String,String> measurementData = new HashMap<String,String>();
measurementData.put("username","Smith");
output.stopMeasure(measurementData);

  output.startMeasure("Navigate");
  //do something
  output.stopMeasure();

Measurement API is currently not available in node.js

Error handling

Step makes a difference between errors which are internal (status “TECHNICAL_ERROR”) and business errors (status “FAILED”). Any unhandled exception raised during the execution of a keyword will end up in the status “TECHNICAL_ERROR”. In order to produce clean reports and leverage this distinction, we highly recommend catching any exception being thrown from within your keywords and handle the situation adequately.

Errors can be handled directly withing the keyword’s function or by implementing the on error.

Technical Errors

In case your still want your keyword to end up in a technical error state, you may use one of the setError methods available in all supported languages. Likewise, any exception which is thrown from the Keyword will result in a technical error. Remember that this is not the preferred approach as internal error should be reserved for Step technical errors.

Business errors

To manage properly any errors related to the system or application which is being automated, you may use the setBusinessError method. This will automatically set the status of the keyword execution to “FAILED”.

If the status as to be determined outside of the keyword, add any meaningful values to the output and perform the check in the caller (i.e. in a Step plan).

In case of exception, you can attach the detailed information to the output object such as the exception message. You can even attach binary content or the exception stack trace to the object by doing so:

output.add("ExceptionMessage",e.getMessage());
output.addAttachment(AttachmentHelper.generateAttachmentForException(e));

Attachment a = AttachmentBuilder.generateAttachmentForException(exception);
output.addAttachment(a);

output.attach({ name: 'exception.log', hexContent: data })

Keyword execution hooks

onError hook

For each language, overriding the onError hook offers a last chance to manage unhandled exceptions. Each time your keyword function throws an exception, this function will be called with the exception as argument. The return value of this function determine if the exception should be re-thrown (return true) or ignored (return false):

• If re-thrown, the status of the execution will be reported as a “TECHNICAL_ERROR” and an attachment of the exception trace will be added
• If ignored, the status will be set as “PASSED” and no error will be reported

Overriding this function is done as follow:

@Override
public boolean onError(Exception e) {
  /* do here cleanup or exception reporting */
  return false;
}

public override bool onError(Exception e)
{
  /* do here cleanup or exception reporting */
  return false;
}

exports.onError = async (exception, input, output, session, properties) => {
  /* do here cleanup or exception reporting */
  return false;
}

beforeKeyword and afterKeyword hooks

For each language, overriding the beforeKeyword or afterKeyword hooks allow you to execute management code before or after a keyword is called. Note that the afterKeyword function will always be called, even if an exception occurs during the keyword execution or during the beforeKeyword call. The onError call is called before the afterKeyword in case of exception.

Overriding these functions is done as follow:

@Override
public void beforeKeyword(String keywordName, Keyword annotation) {
  /* do here some management */
  System.out.println("Calling "+keywordName);
}
@Override
public void afterKeyword(String keywordName, Keyword annotation) {
  /* do here some management */
  takeScreenshot();
}

public override void BeforeKeyword(string KeywordName, Keyword Annotation)
{
  /* do here some management */
  Console.WriteLine("Calling "+keywordName);
}

public override void AfterKeyword(string KeywordName, Keyword Annotation)
{
  /* do here some management */
  TakeScreenshot();
}

Session

Step provides the ability to store data in a session object. This object usually only makes sense when a Session control is used inside the test plan. The session object becomes very useful when passing information or technical objects between keywords (see for example the way we use Selenium’s driver in the next section), especially if the data is difficult or impossible to serialize and de-serialize via the input/output mechanism.

Storing and accessing objects

Storing by name

You can set any kind of data (primitive types or collections) in the session object as follow :

@Keyword(name="PutToSession")
public void putToSession(){
  session.put("string_key", "Here is my value");
  session.put("int_key", 3);
}

session.put("driver", new Wrapper(driver));

session.driver_wrapper = createdDriver_wrapper

You can then access your data from another keyword the same way, but you’ll have to cast the data manually back to its original type :

@Keyword(name="GetFromSession")
public void getFromSession() {
  output.add("my_string_value", (String) session.get("string_key"));
  output.add("my_int_value", (int) session.get("int_key"));
}

Wrapper wrapper = (Wrapper)session.get("driver");

const driver = session.driver_wrapper.driver

If you’re using a collection, see the method Arrays.copyOf to convert all of its content at once back to the original type.

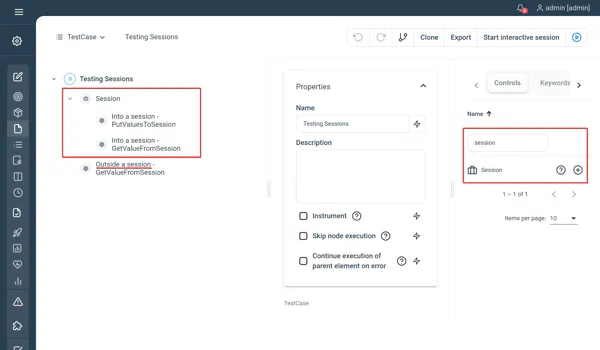

You can then create a test plan using the “Session” control in order to pass the session information trough different Keywords. Note that we also included a keyword outside a session to see what’s append when no session exist but the keyword try to access it anyway:

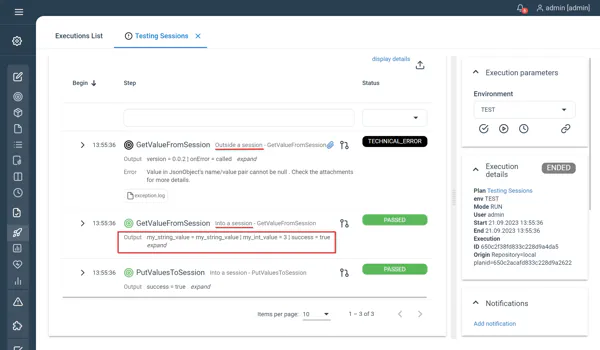

Once you executed the plan you can see as a result that the session objects have been properly retrieved and displayed as output. The last keyword throws an error because it is outside a session and cannot retrieve the objects anymore as the session was closed:

Storing by class name

You can also store your data using the class of the object. You will not need to cast it back but can only store one object per type :

@Keyword(name="PutToSession")
public void putToSession(){
  MyObject obj = new MyObject();
  session.put(obj);
}

You can then access your data from another keyword without having to cast your object:

@Keyword(name="GetFromSession")
public void getFromSession() {
  MyObject obj = session.get(MyObject.class);
}

Releasing session objects

When putting objects in session, it can be useful to have a way to free any resources used by this objects. A typical example will be to quit a Selenium driver when this driver is not used anymore.

This can be done by having the object in session implements Closable:

public class DriverWrapper implements Closeable {
  final WebDriver driver;
  public DriverWrapper(WebDriver driver) {
    super();
    this.driver = driver;
  }
  @Override
  public void close() {
    driver.quit();
  }
  public WebDriver getDriver() {
    return driver;
  }
}

public class DriverWrapper : ICloseable
{
  private IWebDriver Driver;
  public DriverWrapper(IWebDriver driver) {
    this.Driver = Driver;
  }
  public void Close() {
    Driver?.Quit();
  }
  public void GetDriver() {
    return Driver;
  }
}

session.driver_wrapper = {
  'driver': driver,
  'close': function () {
    this.driver.quit()
  }
}

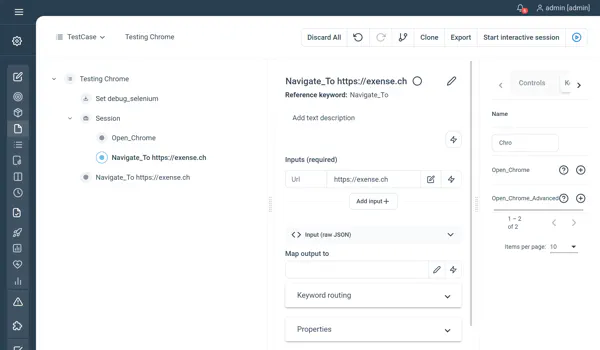

When such object is put into a session, the close function will be called when the session finish. For example, when executing a chrome scenario using our step-library-kw-selenium/ library:

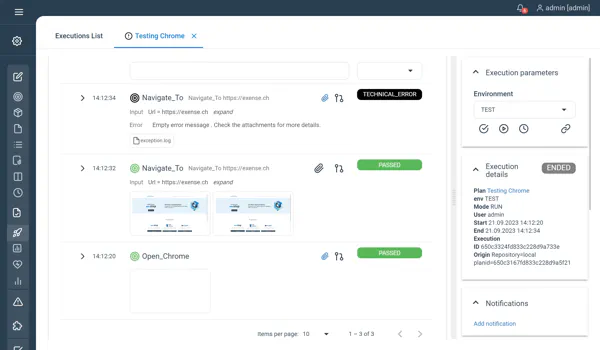

The first call to “Navigate_to” will succeed, but the second one will fail as the chrome driver is closed by then:

Keyword Proxy: plans as Code

The Keyword Proxy is a powerful mechanism that allows developers to invoke keywords directly from within another keyword, enabling the creation of workflows directly in automation code

How it works

The Keyword Proxy acts as an intermediary that enables a “parent” keyword to call one or more “child” keywords seamlessly. The main features are:

• Automatically share the parent keyword’s context (Session, properties…) to the nested keyword calls
• Manage how to propagate the keyword’s output (either by merging all individuals outputs or manually setting the final outputs)
• Automatically creating measurements for all individual keywords calls

Here is a sample to illustrate how it works

    /**
     * WorkflowAsCode is a Step's Keyword making use of the Keyword proxy to invoke other keywords and to create a
     * workflow directly as code. As any other keywords, it can be called from a Step's plan, receiving inputs and returning outputs.
     */
    @Plan
    @Keyword
    public void WorkflowAsCode() {
        //Create a keyword proxy inheriting the current keyword context (i.e. session, properties...)
        //Pass true as 2nd parameter to instruct the proxy to merge all outputs to the current keyword's output, false otherwise
        KeywordProxy keywordProxy = new KeywordProxy(this, true);
        //Get the proxy for the class containing the keywords to be invoked
        KeywordExample proxy = keywordProxy.getProxy(KeywordExample.class);
        //Retrieves inputs passed by the plan calling the WorkflowAsCode keyword (defaulting to properties)
        String myInputString = getInputOrProperty("myInputString");
        // Call nested keywords by directly invoking the keyword method and passing inputs as method arguments
        proxy.myFirstKeyword(3, false, myInputString);
        // The output of the nested keyword calls can be retrieved with the getLastOutput function
        Output<JsonObject> lastOutput = keywordProxy.getLastOutput();
        if (lastOutput.getPayload().getBoolean("shouldFail")) {
            output.appendError("The call to myFirstKeyword returned a failure message");
            return;
        }
        // Call further nested keywords
        proxy.mySecondKeyword();
        proxy.myThirdKeyword(List.of("value1", "value2"), Map.of("key1", "val1"));
    }
