A keyword represent your automation code, it can fully automate your workflow or a piece of it that you will pipe to other keywords in the end. To make its execution dynamic you can pass inputs to it; you can as well set its output and status for reporting and integrate it to more complex flows.

Resources

In addition to below documentation, you will find tutorials on the documentation pages as well as examples on github:

Examples:
Main classes in javadocs related to Keyword:
- AbstractKeyword
- OutputBuilder
Tutorials:
- Browse our tutorials provided for different automation framework and use cases

Keyword declaration

In order to communicate with Step, the class extends the AbstractKeyword superclass. Each method defining a keyword will have to be annotated with the annotation Keyword, will use no arguments and will be of return type void. More details about this class can be found in the javadoc.

public class MyKeywords extends AbstractKeyword{

	@Keyword
	public void myKeyword() {
	   //my automation
	}
}

In order to communicate with Step, the class extends the AbstractScript superclass. Each method defining a keyword will have to be annotated with the annotation Keyword, will use no arguments and will be of return type void.

namespace STEP
{
    public class Keywords : StepApi.AbstractScript
    {
        [Keyword(name = "My Keyword")]
        public void MyKeyword()
        {
          //your implementation
        }
    }
}

Javascript Keyword definition being asynchronous, you must end your keyword with an output.send call.

exports.MyKeyword = async (input, output, session, properties) => {
  //do some work
  output.send({ result: 'OK' })
}

Keyword annotation

The Keyword annotation as following optional attributes which can be used:

name: the name of this keyword. If not specified the method name is used as keyword name
description: a text describing the keyword usage. It will be displayed in the gui
properties: the list of properties required by this keyword
optionalProperties: the list of optional properties which might be used by this keyword
schema: the JSON schema of the input object
timeout: the keyword timeout in milliseconds

More details on the usage and impact of these attributes are described here.

Keyword inputs

A Keyword’s input is a JsonObject with opened types. Thus the developer can choose the type of their arguments but must ensure that they are read accordingly to that type, otherwise the Json reader will throw an error.
The inputs are passed to the keyword by the caller as described in the following sections.

Reading the inputs in code

Inside the Keyword, you can then retrieve your inputs like this:

String homeUrl = input.getString("url");
int elementIndex = input.getInt("index",1);

String homeUrl = (string)input["url"];

var homeUrl = input['url'];

Passing inputs from code

When calling the keyword from your code (for instance in JUnit), you can pass the input as parameter:

ExecutionContext ctx = KeywordRunner.getExecutionContext(properties, this.getClass());
// { "url" : "http://step.exense.ch", "index" : 3 }
Output<JsonObject> output = ctx.run("MyKeyword", "{\"url\":\"http://www.exense.ch\", \"index\" : 3 }");

Passing inputs from the Step plan

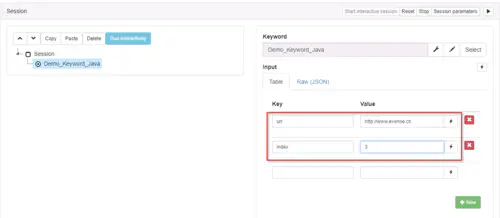

When calling the keyword from a plan, you can pass the input as parameter as shown in below screenshots. More details can be found in the dedicated documentation for plans:

Keyword properties

Keywords can also access a map of properties which contains all variables in the scope of execution. This includes variables defined:

In the properties of the agent executing the keyword
In the plan calling the keyword using “Set”
In the parameters defined in the controller
In the Keyword configuration such as:
$keywordName: the name of the keyword
$keywordTimeout: the defined execution timeout of this keyword

You can retrieve the properties in your keywords from the properties map

properties.get("myVar");

properties["myVar"]

properties['myVar']

Keyword outputs

Each keyword can define the content of its output by using the herited “output” object from its parent class. This output builder object is mainly used to:

add any key/value pair information for example:
- for functional checks in plan
- required for workflow execution
set keyword execution status
add attachments (pdf, screenshots, exception stack trace as text file…)
define response times transactions for RTM

The method of the OutputBuilder class can be found in the javadoc. The same methods are available for .net. For node.js, you may refer to the source code on github.

Custom fields

Below are example on how to add key/value pair information to your keyword’s output object.

You can refer to the javadoc for the full list of available method. Below is an example for adding a field with a String value:

output.add("field_name", "field_value");

output.add("field_name", "field_value");

output.add("field_name","field_value")

Attachment

Below is an example for attaching files to the Keyword’s output:

byte[] bytes = Files.readAllBytes(file.toPath());
Attachment attachment = AttachmentHelper.generateAttachmentFromByteArray(bytes, outputName+".log");
output.addAttachment(attachment);

Attachment a = AttachmentBuilder.generateAttachmentForException(exception);
output.addAttachment(a);

output.attach({ name: 'screenshot.png', hexContent: data })

Measurements

Measurements are automatically created by the controller when executing a keyword. This represents the keyword execution time from the controller view (but excluding any delegation time to the agents). You can create custom RTM transactions inside your keyword to have finer granularity and/or to enrich the transactions with any key/value pair for analytics purposes.

Refer to the OutputBuilder class’s javadoc for all available methods.

Example:

output.startMeasure("CustomMeasureInKeyword");
//Do some automation work
output.startMeasure("CustomMeasureInKeyword_Inner");
//Do some further work to be measured with finer granularity
output.stopMeasure();//this stop the lasted opened transaction: "CustomMeasureInKeyword_Inner"
//Add some values to the measurement for analytics in RTM and close the measurement "CustomMeasureInKeyword"
Map<String,String> measurementData = new HashMap<String,String>();
measurementData.put("username","Smith");
output.stopMeasure(measurementData);

  output.startMeasure("Navigate");
  //do something
  output.stopMeasure();

Measurement API is currently not available in node.js

Error handling

Step makes a difference between errors which are internal (status “TECHNICAL_ERROR”) and business errors (status “FAILED”). Any unhandled exception raised during the execution of a keyword will end up in the status “TECHNICAL_ERROR”. In order to produce clean reports and leverage this distinction, we highly recommend catching any exception being thrown from within your keywords and handle the situation adequately.

Technical Errors

In case your still want your keyword to end up in a technical error state, you may use one of the setError methods available in all supported languages. Likewise, any exception which is thrown from the Keyword will result in a technical error. Remember that this is not the preferred approach as internal error should be reserved for Step technical errors.

Business errors

To manage properly any errors related to the system or application which is being automated, you may use the setBusinessError method. This will automatically set the status of the keyword execution to “FAILED”.

If the status as to be determined outside of the keyword, add any meaningful values to the output and perform the check in the caller (i.e. in a Step plan).

In case of exception, you can attach the detailed information to the output object such as the exception message. You can even attach binary content or the exception stack trace to the object by doing so:

output.add("ExceptionMessage",e.getMessage());
output.addAttachment(AttachmentHelper.generateAttachmentForException(e));

Attachment a = AttachmentBuilder.generateAttachmentForException(exception);
output.addAttachment(a);

output.attach({ name: 'exception.log', hexContent: data })

onError hook

For each language, overriding the onError hook offers a last chance to manage unhandled exceptions. Each time your keyword function throws an exception, this function will be called with the exception as argument. The return value of this function determine if the exception should be re-thrown (return true) or ignored (return false):

If re-thrown, the status of the execution will be reported as a “TECHNICAL_ERROR” and an attachment of the exception trace will be added
If ignored, the status will be set as “PASSED” and no error will be reported

Overriding this function is done as follow:

@Override
public boolean onError(Exception e) {
	/* do here cleanup or exception reporting */
	return false;
}

public override bool onError(Exception e)
{
	/* do here cleanup or exception reporting */
  return false;
}

exports.onError = async (exception, input, output, session, properties) => {
	/* do here cleanup or exception reporting */
  return false;
}

beforeKeyword and afterKeyword hooks

For each language, overriding the beforeKeyword or afterKeyword hooks allow you to execute management code before or after a keyword is called. Note that the afterKeyword function will always be called, even if an exception occurs during the keyword execution or during the beforeKeyword call. The onError call is called before the afterKeyword in case of exception.

Overriding these functions is done as follow:

@Override
public void beforeKeyword(String keywordName, Keyword annotation) {
  /* do here some management */
  System.out.println("Calling "+keywordName);
}
@Override
public void afterKeyword(String keywordName, Keyword annotation) {
  /* do here some management */
  takeScreenshot();
}

public override void BeforeKeyword(string KeywordName, Keyword Annotation)
{
  /* do here some management */
  Console.WriteLine("Calling "+keywordName);
}

public override void AfterKeyword(string KeywordName, Keyword Annotation)
{
  /* do here some management */
  TakeScreenshot();
}

Not available for the node js agent

Session

Step provides the ability to store data in a session object. This object usually only makes sense when a Session control is used inside the test plan. The session object becomes very useful when passing information or technical objects between keywords (see for example the way we use Selenium’s driver in the next section), especially if the data is difficult or impossible to serialize and de-serialize via the input/output mechanism.

You can set any kind of data (primitive types or collections) in the session object by doing so :

@Keyword(name="PutToSession")
 public void putToSession(){
   session.put("string_key", "Here is my value");
   session.put("int_key", 3);
 }

session.put("driver", new Wrapper(driver));

session.driver_wrapper = createdDriver_wrapper

You can then access your data the same way, but you’ll have to cast the data manually back to its original type :

@Keyword(name="GetFromSession")
 public void getFromSession() {
   output.add("my_string_value", (String) session.get("string_key"));
   output.add("my_int_value", (int) session.get("int_key"));
 }

Wrapper wrapper = (Wrapper)session.get("driver");

const driver = session.driver_wrapper.driver

If you’re using a collection, see the method Arrays.copyOf to convert all of its content at once back to the original type.

You can then create a test plan using the “Session” control in order to pass the session information trough the Keywords :

Once you executed the plan you can see as a result that the session objects have been properly retrieved and displayed as output :
