Automation Packages are defined in a declarative way using YAML alongside the automation code. The Step Automation Package YAML syntax is specified by the Automation Package JSON schema, for more convenient work you can configure the embedded file editor in your IDE (IntelliJ IDEA or Visual Studio) to associate this schema with the Step YAML automation packages.

For Java Automation Packages, it is possible to directly declare certain entities in the code in addition to the YAML descriptor.

YAML descriptor

The automation package description is specified in a file name automation-package.yaml by convention. The top-level nodes of this descriptor consists of the following fields:

name - the name of automation package
schemaVersion - the version of the YAML automation package schema. This field is optional, but recommended to keep the information about the json schema version you have used and to be notified in case of mismatch.
keywords - fragment containing the keywords specifications
plans - fragment containing the plans specifications
schedules - fragment containing the schedule specifications
alertingRules - fragment containing the alerting rules specifications

Each fragment is optional.

Example:

---
schemaVersion: 1.0.0
name: "load-testing-k6-automation-package"
keywords:
  - K6:
      name: 'OpenCart home'
      vus: 1
      iterations: 1
      scriptFile: "opencart-test.js"
plans:
  - name: "Opencart load test plan"
    root:
      testScenario:
        children:
          - threadGroup:
              users: 5
              iterations: 10
              children:
                - callKeyword:
                    keyword: "OpenCart home"

Keywords

Automation Packages support all Step Keyword types in a declarative way except for Astra, QF Test and PDF Test keywords. This includes for instance Java-based keywords (Playwright, Cypress, Selenium, etc), JMeter keywords and Grafana K6 keywords. You may read the related documentation for details on the configuration properties related to each keyword type, the same are available in YAML format.

Following sections give some details for a subset of these keyword’s types

Java keywords

Java keywords are supported natively with the Java @Keyword annotation and do not have to be specified in the YAML descriptor. In other words, any Keywords defined in the Java code contained in the automation package will be part of the package.

Please note that Java Keywords can include any third-party library and can thus be used to declare Keywords relying on Selenium, Playwright, or any other library supporting Java.

JMeter

Existing JMeter test plans can be declared as Keyword in automation packages using the JMeter keyword type as follows:

keywords:
  - JMeter:
      name: "JMeter keyword from automation package"
      description: "JMeter keyword 1"
      jmeterTestplan: "jmeterProject1/jmeterProject1.xml"

Fields:

name: an arbitrary name for the Keyword. This name will be used in the plan to reference the Keyword
jmeterTestplan: the relative path to the JMeter test plan (xml)

Refer to the automation package schema for an exhaustive list of supported fields.

Cypress

Cypress Keywords can be declared in automation packages using the Cypress type as follows:

keywords:
  - Cypress:
      name: eCommerce - Typical visit
      cypressProject: cypress-test/
      spec: "opencart.cy.js"

Fields:

name: an arbitrary name for the Keyword. This name will be used in the plan to reference the Keyword
cypressProject: the relative path to the Cypress project containing the cypress.config.js
spec: the filename of the Cypress spec to be executed

Refer to the automation package schema for an exhaustive list of supported fields.

Read more about the Cypress integration here

K6

Existing K6 tests can be declared as Keyword in automation packages using the K6 keyword type as follows:

keywords:
  - K6:
      name: 'OpenCart home'
      scriptFile: "opencart-test.js"
      vus: 1
      iterations: 1

Fields:

name: an arbitrary name for the Keyword. This name will be used in the plan to reference the Keyword
scriptFile: the relative path to the K6 file to be executed
vus: optional number of VUs to run concurrently (K6 option ‘vus’)
iterations: optional number of iterations to be executed by each VU (K6 option ‘iterations’)

Refer to the automation package schema for an exhaustive list of supported fields.

.NET

.NET keywords can be declared in automation packages using the DotNet type as follows:

keywords:
  - DotNet:
      name: "Open_Chrome_and_search_in_Google"
      dllFile: "DotNet/SeleniumKeywords.dll"
      librariesFile: "DotNet/AllDlls.zip"

Fields:

name: the name of the Keyword. This name will be used in the plan to reference the Keyword. It should match the name of the Keyword contained in the referenced DLL
dllFile: the relative path to the DLL file containing the Keyword
librariesFile: optional path to the folder containing the library DLLs

Refer to the automation package schema for an exhaustive list of supported fields.

Read more about the .NET integration here

Node.js (JavaScript / TypeScript)

JavaScript / TypeScript keywords can be declared in automation packages using the Node keyword type as follows:

keywords:
  - Node:
      name: MyNodeKeyword
      jsfile: nodejs-keywords/

Fields:

name: the name of the Keyword. This name will be used in the plan to reference the Keyword. It should match the name of the Keyword contained in the referenced project
jsfile: the relative path to the Node.js project containing the Keyword definitions. This project should contain the package.json file and the keyword definitions in the folder keywords/

Refer to the automation package schema for an exhaustive list of supported fields.

Read more about the Node.js integration here

Oryon

Oryon keywords can be declared in automation packages using the Oryon keyword type as follows:

keywords:
  - Oryon:
      name: OryonKeyword
      scriptFile: oryon-script.groovy

Fields:

name: an arbitrary name for the Keyword. This name will be used in the plan to reference the Keyword
scriptFile: the relative path to the Oryon script

Refer to the automation package schema for an exhaustive list of supported fields.

Composite keyword

Composite keywords can be declared in automation packages using the Composite type.

keywords:
  - Composite:
      name: "Composite Keyword"
      plan:
        root:
          sequence:
            children:
              - echo:
                  text: "In Composite keyword"
              - return:
                  output:
                    - compositeOutput: "Composite Keyword output value"

The node plan contains the composite plan and follows the same structure as normal plans.

Read more about the Composite Keywords here

Plans

Plans are fully supported by the YAML format meaning that you can define plans in YAML identical to the ones created with the visual editor in Step. To understand the purpose and configuration of the many plan controls, refer to the dedicated documentation

Plans syntax

The plans are represented by a tree structure as in the visual plan editor and must contain a root node defining the type of plans (test set, test case, test scenario …). The different nodes share at least the following common properties:

nodeName - [optional] name this node
categories - [optional] list of categories assigned to this plan (categories can be used to filter plans for local and remote executions. See Filtering Plans).
description - [optional] some textual description for the node
children - [optional] the list of children of this node

Refer to the Controls documentation for the documentation and examples of the supported controls.

For instance, the following YAML descriptor contains a single plan of type test case invoking a keyword named “My Keyword”

---
name: "My automation package"
plans:
  - name: "Simple plan"
    categories:
      - "FunctionalTests"
    root:
      testCase:
        children:
          - callKeyword:
              keyword: "My Keyword"

Convert visual plan to YAML

To convert existing plans to YAML or to help you develop plans in YAML syntax, you may generate the plan in YAML format from the visual plan editor.

Convert Step visual plans to YAML plans

Advanced keyword call

In order to pass inputs to a keyword or to route the execution of the said keyword to specific agents, following syntax is used:

---
name: "My automation package"
plans:
  - name: "Simple plan"
    root:
      testCase:
        children:
          - callKeyword:
              keyword: "My Keyword"
              inputs:
                - myInputNumber: 1
                - myInputBoolean: true
                - myInputString: "some input"
              routing:
                - agentOS: "windows"

Dynamic expressions

As in the visual plan editor many input fields for plan controls accept either a literal value or a dynamic expression evaluated with groovy, for instance to resolve the value of a variable. The same is possible with the YAML syntax.

Example of a thread group defined with literal values:

- threadGroup:
  users: 5
  iterations: 10

Example of a thread group defined with variables:

- threadGroup:
  users:
    expression: "nbUsers"
  iterations:
    expression: "nbIterations"

Controls - YAML specificities

While most controls properties are identical to the one of the visual plans or self-explanatory, there a few exceptions.

AssertMetric

In YAML, the metrics names are slightly different than in the UI, here are the mapping from YAML to UI:

response-time: “Response time”
executions/count: “Execution count”
executions/failure-percentage: “Execution failure percentage”
executions/failure-count: “Execution failure count”
executions/failures-count-by-error-code: “Execution failure count by error code”

Agent provisioning settings

When running in Kubernetes, Step supports automatic provisioning of Agents. This section explains how to define the provisioning settings in Automation Packages.

The provisioning settings can be defined for each Plan using the agents field.

Refer to the Agent provisioning page for more details about this feature.

Enable automatic determination and provisioning of agents

To enable the automatic determination and provisioning of Agents, the field agents has to be set to “auto_detect” as follows:

---
schemaVersion: 1.0.0
name: "my-automation-package"
plans:
- name: "OpenCart okhttp Load Test"
  agents: auto_detect
  ...

Manual specification of agents

In order to specify the agents manually, a list of pools can be defined in the agents field:

---
schemaVersion: 1.0.0
name: "my-automation-package"
plans:
- name: "OpenCart okhttp Load Test"
  agents:
  - pool: java-enterprise-agent
    replicas: 2
    image: docker-dev.exense.ch/test:agent-java-custom

It supports 3 fields:

pool: specifies the name of the pool template to be provisioned. You can get the list of available pool in the UI (see previous section).
replicas: specifies the number of agents to be provisioned.
image: optionally specifies the Docker image to be used for the pool. Refer to Creating your own Agent images for details on how to create custom images.

Schedules

Schedules can be defined in the YAML descriptor too using the same configuration properties as in the Step UI. Note if you need help to define the CRON expression we recommend using the Step UI wizard.

Example:

schedules:
  - name: "Opencart synthetic monitoring schedule"
    #CRON expression for one execution per minute
    cron: "0 0/1 * * * ?"
    planName: "Opencart synthetic monitoring plan"

Notification Presets

Here is a snippet showcasing the definition of Notification Presets:

notificationPresets:
  - EmailNotification:
      presetName: "Sample mail"
      upstreamPreset: "Mail"
      subject:
        data: "${eventSummary}"
        protection: READONLY
  - WebhookNotification:
      presetName: "Sample Webhook call"
      upstreamPreset: "Webhook"
      url:
        data: "https://example.org"
      method:
        data: "POST"
      body:
        data: "{\"Hello\": \"World\"}"
      headers:
        data:
          "X-Step-URL" : "${controllerUrl}"

Alerting rules

Alerting rules can also be defined in YAML as you would do it in the UI. Example:

alertingRules:
  - description: "Send email for incident created for Opencart synthetic monitoring"
    name: "Opencart synthetic monitoring email"
    eventClass: IncidentOpenedEvent
    conditions:
      - BindingCondition:
          bindingKey: "executionParameters"
          predicate:
            BindingExistsPredicate:
              {}
      - BindingCondition:
          bindingKey: "executionParameters[env]"
          predicate:
            BindingValueEqualsPredicate:
              value: "PROD"
    actions:
      - NotificationAction:
          notification:
            EmailNotification:
              upstreamPreset: "Sample Mail"
              from:
                data: "me@example.org"
              to:
                data:
                  - "you@example.org"
                  - "them@example.org"
              bodyPlaintext:
                data: "An incident was opened, technical information: %{bindings}"

Fragment files

The concept of fragment files enables the creation of modular automation packages.

A fragment file declares automation package entities using the same syntax as automation package files and can be included in a main automation package to build packages in a modular way.

Fragment files are referenced in the main automation package file using the fragments field:

schemaVersion: 1.0.0
name: "My Automation Package"
fragments:
- "fragment1.yml"
- "fragment2.yml"

Each entry of the fragment list can be either the relative path to the referenced fragment or a wildcard expression referencing a list of fragments:

schemaVersion: 1.0.0
name: "My Automation Package"
fragments:
- "fragments/*.yaml"

Example

Here’s an example of a main automation-package.yaml referencing 2 fragments that each define a plan to be included in the automation package:

schemaVersion: 1.0.0
name: "My Automation Package"
fragments:
- "plan1.yml"
- "plan2.yml"

The plan1.yml file would only contain the definition of the plan 1:

plans:
  - name: "Plan 1"
    root:
      testCase:
        children:
          - echo:
              text: "Hello world 1"

Setup your IDE for auto-completion and validation

The JSON schema can be directly downloaded here and used in IntelliJ:

Additionally, you can download the schema from your Step instance by going to the Automation Package view and access the help menu. The underlying REST service can also be used directly for integration: <Your_Step_instance>/rest/automation-packages/schema

In IntelliJ IDEA verify that the use of remote JSON Schemas is enabled as follow

In IDEA settings you need to open the Languages & Frameworks, and set the Use schemastore.org JSON Schema catalog flag in Remote JSON Schemas subsection there.

Then you can setup bindings to link the Step YAML plan files with the actual JSON Schema published to schemastore.org:

In IDEA setting open the JSON Schema Mappings in Languages & Frameworks section.
Find a choose the actual JSON Schema for Step YAML automation packages on schemastore.org (EE or OS version)
Choose the files you want to link with selected JSON Schema

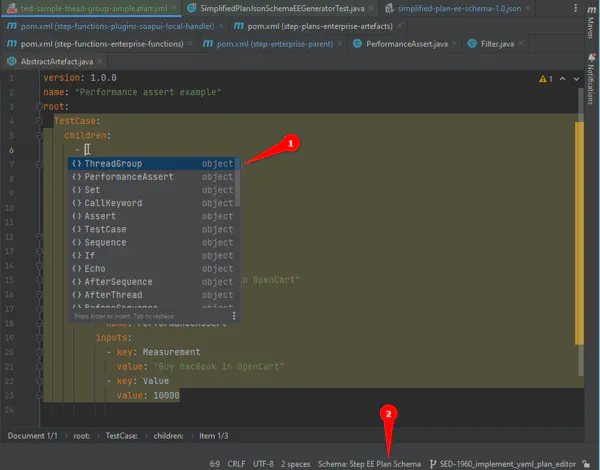

After that you can use the chosen schema in the embedded YAML editor:

When you type something in the YAML editor linked with JSON Schema, IDEA shows the on-the-fly suggestions and validates entered data according to the selected JSON Schema
For the current file you can change the link to the JSON Schema (switch schema from OS version to EE or update schema to the latest version)

Automation Package descriptor

YAML descriptor

Keywords

Java keywords

JMeter

Cypress

K6

.NET

Node.js (JavaScript / TypeScript)

Oryon

Composite keyword

Plans

Plans syntax

Convert visual plan to YAML

Advanced keyword call

Dynamic expressions

Controls - YAML specificities

AssertMetric

Agent provisioning settings

Enable automatic determination and provisioning of agents

Manual specification of agents

Schedules

Notification Presets

Alerting rules

Fragment files

Example

Setup your IDE for auto-completion and validation

See Also
